Forged Couplings / Sockets

ASME B16.11 SS Threaded Full Couplings, Carbon Steel Socket weld Half Couplings, Forged Threaded Sockets Supplier

Alloy Steel Reducing Couplings, SS Sockets, Duplex Steel Threaded Couplings, Inconel Full Couplings Exporter In India.

Sanghvi Overseas is one of the prime manufacturers of Forged Couplings / Sockets that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Our Forged Couplings is a fitting that permits two pipes to be joined together. Forged Half Couplings are a fitting at lets one pipe and one fitting to be joined together. We also offer Forged Full Couplings that are being used in different applications because of their elevated strength and durability. These Socket Weld Half Couplings and Socket Weld Full Couplings are manufactured by using superior-grade steel and very much advanced techniques that certify their durability and quality. Meanwhile, these fittings can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients. We offer the same in market leading prices.

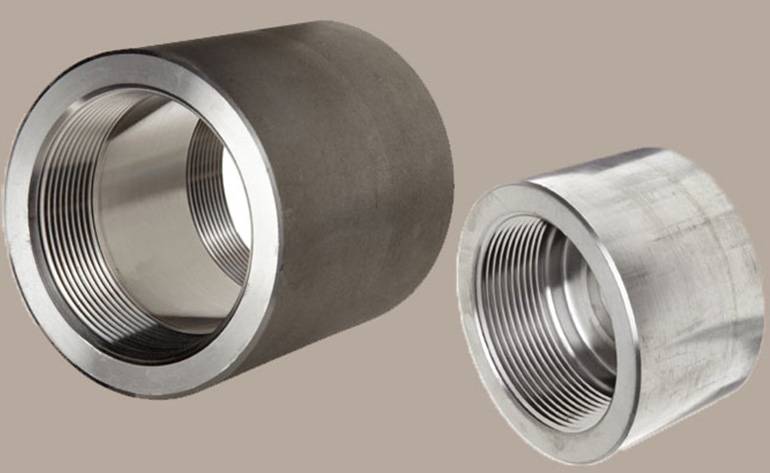

Stainless Steel Forged Couplings
Stainless Steel Forged Couplings
Carbon Steel Forged Couplings
Carbon Steel Forged Couplings

Forged Couplings / Sockets Specification :

Standards :ASTM A182, ASTM SA182

Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/4" NB TO 4" NB

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Form : Couplings, Full Couplings, Half Couplings, Reducing Couplings.

Type : Socketweld Fittings & Screwed-Threaded NPT, BSP, BSPT Fittings


Forged Couplings / Sockets Material & Grades :

Stainless Steel Forged Couplings : ASTM A182, ASTM / ASME SA 358, ASTM / ASME SA 312 GR. TP 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Alloy Steel Forged Couplings : ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Duplex & Super Duplex Steel Forged Couplings : ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Couplings : ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Copper Alloy Steel Forged Couplings : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Couplings : ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
