Monel 400 / K500 Pipes & Tubes

Monel Pipes, Monel Alloy Tubes, Monel Piping & Tubings Stockholder, ASTM B165 Monel 400 Seamless Pipes Stockist, ASME SB725 Monel K500 Welded Pipes Wholesaler, ASME SB730 Monel Alloy 400 / K500 Welded Tubes Distributor, ASTM B165 Nickel Alloy 400 Instrumentation Seamless Tubes Exporter, Alloy K500 Fabricated Pipes Manufacturer in Mumbai, India.

Monel 400 / K500 ASTM B730 Electric Fusion Welding (EFW steel Tubes) Stock, DIN 2.4360 Electric Fusion Welding (EFW steel pipe) Stockist, DIN 2.4375 Capillary & Electropolished Tubing Traders, UNS N04400 Large Diameter Pipes Distribution, UNS N05500 Heat-Exchanger Pipe Distributor, Alloy 400 Monel Square Pipes, Nickel Alloy K500 Round Tubes Supplier..

Sanghvi Overseas is one of the prime manufacturers of Monel Alloy 400 / K500 Pipes and Tubes that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Monel Alloy 400 Seamless Pipes offers an inferior cost option to commercially untainted Nickel because of the Copper content. However, it preserves very parallel properties to Nickel 200 / Nickel 201 Pipes. Monel Alloy K500 Seamless Pipes are almost nonmagnetic, even at relatively low temperatures Also referred as UNS N04400, these Monel 400 Pipes are engaged for heat exchanger piping, process vessels, and storage tanks of gasoline and potable water in the marine sector. And also referred as UNS N05500, these Monel K500 Pipes has an extremely superior dimensional stability. Meanwhile, these pipes and tubes can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients. We offer the same at market leading prices.

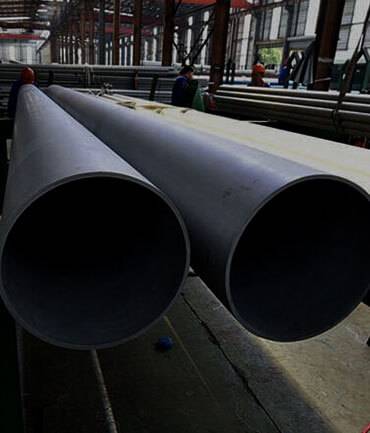

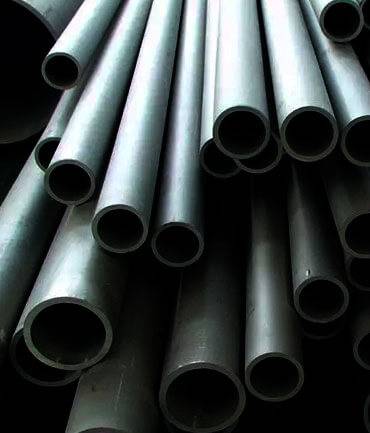

Monel 400 / K500 Seamless Pipes
Monel 400 / K500 Seamless Pipes
Monel Alloy 400 / K500 Welded Pipes
Monel Alloy 400 / K500 Welded Pipes
Specifications : ASTM B165, B725, B730 / ASME SB165, SB725, SB730
Dimensions : ASTM, ASME and API
Size : 15mm NB to 150mm NB (1/2" to 6"), 7″ (193.7mm OD to 20″ 508mm OD)
Outer Diameter : 1.250″ – 6.000″ (30-150mm)
Wall Range : 0.095″ – 1.000″ (.2.5-25mm)
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tube
Length : Single Random, Double Random & Cut Length or As per customer's requirement (Maximum upto 7 meters)
Grades : Monel UNS (N04400, N05500), DIN (2.4360, 2.4375)

Equivalent Grades for ASTM B725 Monel 400 / K500 Welded Pipes

STANDARD UNS WNR. JIS BS GOST AFNOR EN
Monel 400 N04400 2.4360 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Monel K500 N05500 2.4375 - - - - -

Chemical Composition for ASTM B730 Monel Alloy 400 / K500 Welded Tubes

Grade C Mn Si S Cu Fe Ni
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical properties of ASME SB165 Nickel Alloy 400 / K500 Seamless Pipes

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %



Types Of Monel 400 / K500 Pipes & Tubes

Monel Pipes Monel Alloy Tubes
Monel 400 Seamless Pipes Distribution ASTM B730 Monel K500 Welded Tubes
ASTM B165 Monel Alloy K500 Seamless Cold Finished Tubes Traders ASTM B165 Monel Alloy 400 Seamless Round Pipes Stockholder
400 Monel Polished Pipes Supplier. K500 Monel Welded Rectangular Hollow Tubes Dealer
UNS N04400 Welded Square Pipe Wholesaler UNS N05500 Bright Annealed Pipe & Tubes Manufacturer
DIN 2.4360 ASME SB165 Hot Finished Seamless Tubes Exporter DIN 2.4375 Electropolished Pipes and Tubes Importer
K500 Nickel Alloy Oval Tubes Distributor Nickel Alloy K500 Capillary Pipes & Tubes Fabricator
ASME SB165 Monel 400 Cold Drawn Seamless Tubes Monel 400 Hydraulic Tubing & Piping Exporter
Monel Alloy K500 Large Diameter Pipes & Tubes Stockist Monel Alloy K500 Fabricated Pipes & Tubes Stock
Nickel Alloy 400 ERW (Electric Resistance Welded) Pipes 400 Nickel Alloy ASME SB730 EFW Electric Fusion Welding) Tubes
