Forged Elbows

ASME B16.11 SS Threaded 90deg. Elbow, Steel Forged Elbow, Carbon Steel 45deg. Socket weld Elbow Supplier

BS 3799 Alloy Steel 45degree Elbow, Duplex Steel 1800degree Threaded Elbow, Nickel Forged Elbow Exporter In India.

Sanghvi Overseas is one of the prime manufacturers of Forged Elbows that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Our Socket Weld 45 Deg Elbows generally find applications in different corrosive industrial and high temperature applications. These Forged 90 Deg Elbows are acceptable for its ideal angular bent to repair two pipes in the related manner. Further, our range of Socket Weld 180 Deg Elbows is extensively used in different industries such as gas, oil and petrochemicals. It has some great features like having resistance to abrasion, superior strength, excellent tensile strength, outstanding performance, first-rate quality of steel, easy to install, and more. Meanwhile, these fittings can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients. We offer the same in market leading prices.

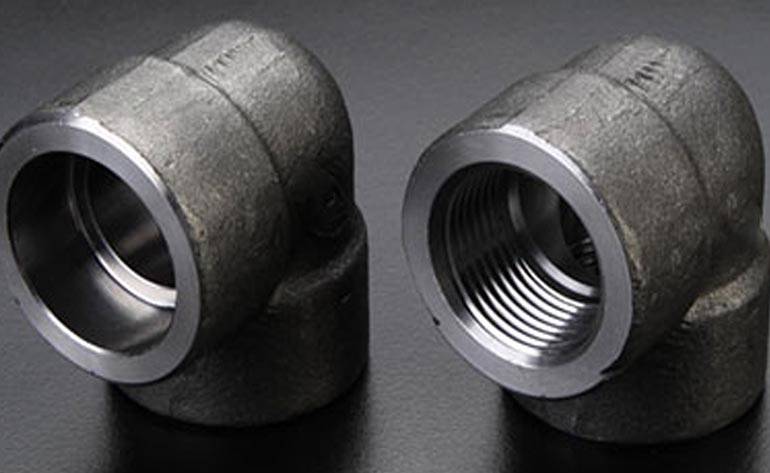

Stainless Steel Forged Elbows
Stainless Steel Forged Elbows
Carbon Steel Forged Elbows
Carbon Steel Forged Elbows

Forged Elbows Specification :

Standards : ASTM A182, ASTM SA182

Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/4" NB TO 4" NB

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.

Type : Socketweld Fittings & Screwed-Threaded NPT, BSP, BSPT Fittings


Forged Elbows Material & Grades :

Stainless Steel Forged Elbows : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Alloy Steel Forged Elbows :ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Duplex & Super Duplex Steel Forged Elbows : ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Elbows : ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Copper Alloy Steel Forged Elbows : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Elbows : ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
