Stainless Steel 304 Electropolish Pipes Supplier

Stainless Steel 304 Electropolish Pipes, Stainless Steel Electropolished Pipe, 304 Stainless Steel EP Pipes Supplier, 304 Stainless Steel Electro Polished Pipe, SS 304 Electropolish Pipes, Stainless Steel 304 Electropolished Tubes, 304 Stainless Steel Electropolished Pipes Supplier In Mumbai, India.

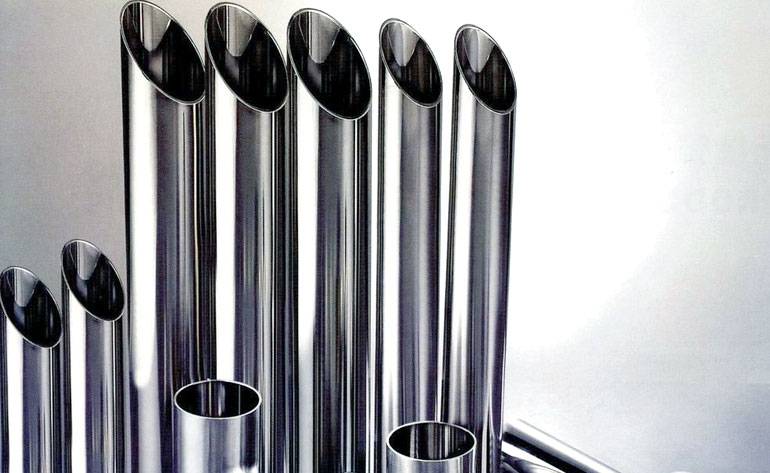

Stainless Steel 304 Electropolished Pipes

Stainless Steel 304 Electropolish Pipe is a specialized variant of stainless steel tubing designed to meet high-quality standards in various industries. The term "electropolish" refers to an electrochemical process that improves the surface finish of the stainless steel, providing a smooth and reflective appearance. This process not only enhances the aesthetic appeal of the pipe but also improves its corrosion resistance and cleanliness.

The base material, Stainless Steel 304, is a versatile and widely used austenitic stainless steel alloy. It contains chromium and nickel, making it corrosion-resistant and suitable for a wide range of applications, including food processing, pharmaceuticals, chemical processing, and more. The electropolishing process involves immersing the stainless steel pipe in an electrolyte bath and applying an electric current. This results in the removal of a thin layer of material from the surface, eliminating imperfections, weld discoloration, and contaminants.

The electropolishing of Stainless Steel 304 pipes offers several key benefits. Firstly, it improves the corrosion resistance of the material by creating a passive, protective oxide layer on the surface. This layer acts as a barrier against corrosive elements, enhancing the pipe's durability and longevity. Secondly, the electropolished finish provides a smooth and non-porous surface, reducing the risk of bacterial adhesion and contamination. This makes SS 304 Electropolished Pipes particularly suitable for applications in industries with strict hygiene requirements, such as the pharmaceutical and food industries.

Additionally, the enhanced surface finish of Stainless Steel 304 Electropolish Pipe makes it visually appealing, making it suitable for applications where aesthetics is important. The reflective and smooth surface is not only attractive but also facilitates easier cleaning and maintenance.


Standard: ASTM A312 A269 / ASME SA312, SA269

Dimension: ANSI/ASME B36.19M, ANSI/ASME B36.10M

Seamless Electropolished Pipe Sizes: 1 / 2" NB - 16" NB

Welded Electropolished Pipe Sizes: 1 / 2" NB - 24" NB

Electropolished Pipe Manufacturing Process : Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded

Electropolished Pipe Schedule: SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS

Length: Single Random, Double Random, Standard & Cut length

Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

Outside Finish: 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Electropolished Tubes, Finish as per customer Requirements

Value Added Services: Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

Available Types of Stainless Steel 304 Electropolished Pipe

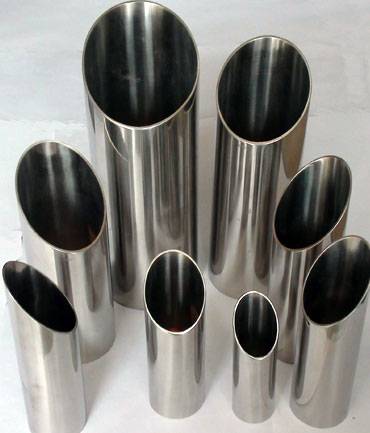

SS 304 Electropolished Welded Pipe

Stainless Steel 304 Electropolished Welded Pipe

Stainless Steel 304 Electropolished Welded Pipe

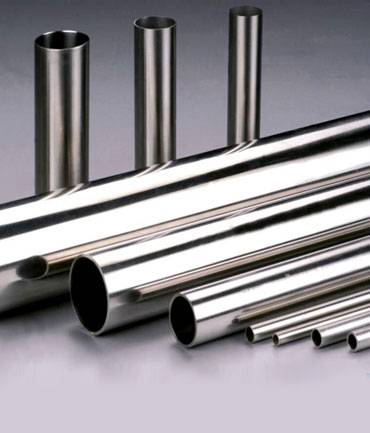

SS 304 Electropolished Seamless Pipe

Stainless Steel 304 Electropolished Seamless Pipe

Stainless Steel 304 Electropolished Seamless Pipe

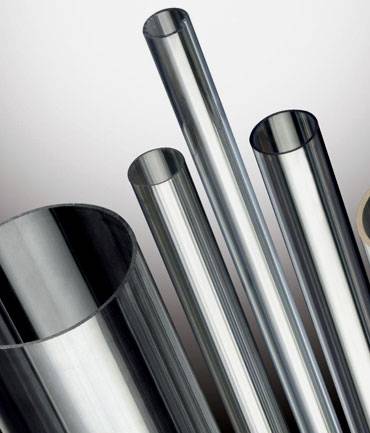

SS 304 Electropolished Round Pipe

Stainless Steel 304 Electropolished Round Pipe

Stainless Steel 304 Electropolished Round Pipe

Equivalent Grades of Stainless Steel 304 Electropolish Pipes

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
SS 304 S30400 1.4301 Z7CN18‐09 X5CrNi18-10 SUS 304 304S31 08Х18Н10

Chemical Composition of Stainless Steel 304 Electropolished Pipes

Grade C Mn Si P S Cr Mo Ni N
304 0.08 2.0 0.75 0.045 0.030 18.0-20.0 - 8.0-10.5 0.10

Stainless Steel 304 Electropolish Pipes Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
