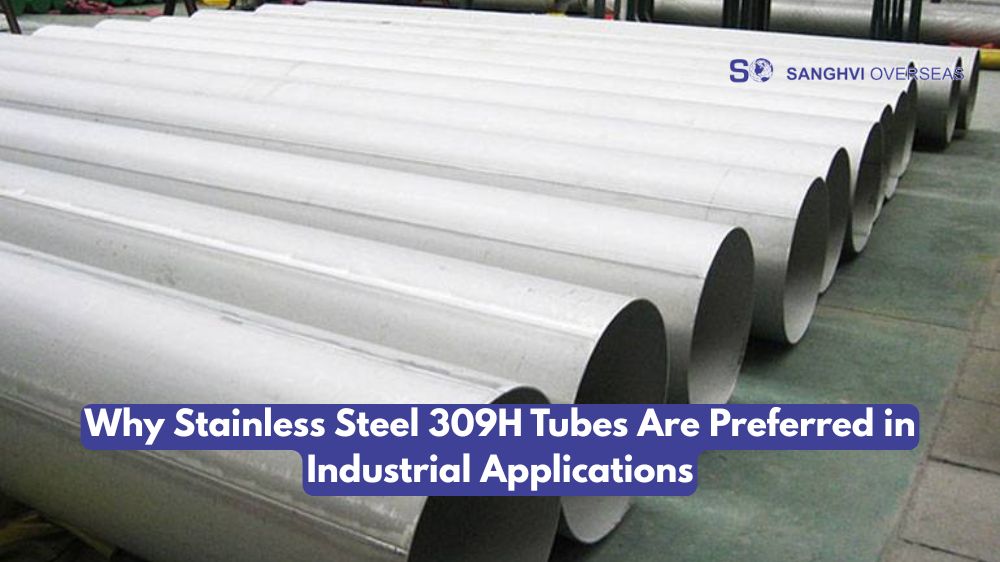

Industries today work at higher temperatures than ever before. Furnaces run hotter. Boilers face constant heat cycles. Chemical plants push equipment to its limits. In these kinds of situations, choosing the right materials is not an option; it is a necessity. Using the wrong material can cause early failure, safety problems, and expensive shutdowns. This is where the 309H stainless steel tubes come in. These tubes can handle heat, stress, and bad weather without getting weaker. They are a reliable choice in heavy industries as they can stay stable at high temperatures. Power plants, petrochemical units, furnaces and heat exchangers widely use SS 309H tubes. When heat resistance and a long service life are important, many Stainless steel tube suppliers suggest this grade. This blog talks about what makes these tubes so reliable and why industries still use them.

What Are Stainless Steel 309H Tubes?

Stainless Steel 309H tubes are high-temperature–resistant austenitic stainless steel tubes designed for service in extreme heat conditions. Grade 309H is the high-carbon version of stainless steel 309. It is developed to deliver better strength and creep resistance at elevated temperatures. Its chemical composition is carefully balanced, with chromium typically in the range of 22–24% to provide strong oxidation and scaling resistance. Nickel is about 12–15% which maintains the austenitic structure and toughness at high temperatures. A higher carbon content of about 0.04–0.10% makes the material stronger when it is exposed to high temperatures for a long time. Adding small amounts of manganese (up to 2%) and silicon (up to 1%) makes the material easier to work with when it’s hot and makes it even more resistant to oxidation.

The main difference between grades 309, 309S, and 309H lies in carbon content. Standard 309 has a moderate amount of carbon (about 0.20%), 309S has a low carbon (about 0.080%) to make it easier to weld and 309H has a higher carbon (0.04–0.10%) to make it stronger at high temperatures. This composition gives SS 309H tubes great resistance to heat, oxidation and thermal stress while maintaining their mechanical strength for a long time. These characteristics make them a preferred choice for furnaces, boilers, heat exchangers, and other industrial systems where sustained high-temperature performance is critical.

Key Properties of Stainless Steel 309H Tubes

These tubes have unique traits that make them a preferred choice in demanding industries.

• Excellent Heat and Oxidation Resistance: The high chromium content (22-24%) forms a tough scale on the surface of the tube. This scale prevents oxygen from oxidising the metal. This allows it to work in air temperatures up to 1038°C (1900°F).
• Superior Creep Strength: Creep is when metal slowly deforms under constant stress at high heat. The extra carbon in the “H” grade keeps the grain structure tight, so the tube holds its shape even under heavy pressure.
• Good Corrosion Resistance: While they are famous for heat, they also fight off rust. They handle wet corrosion well and are very resistant to waste liquors and acidic environments found in many factories.
• Maintains Mechanical Strength: Some metals become brittle or soft as they get hot. SS 309H Tubes stay stiff and strong. This ensures the pipes don’t burst or leak when the furnace is at full blast.
• Thermal Fatigue Resistance: These tubes can handle being heated up and cooled down over and over. This “cycling” often cracks cheaper metals, but 309H is flexible enough to expand and shrink without breaking.

Why SS 309H Tubes Perform Well in Industrial Conditions

The success of these tubes comes down to how they behave when the pressure is on.

• Stability Under Thermal Stress: The metal structure stays balanced even when the temperature swings wildly.
• Resistance to Scaling: They don’t “flake off” or lose their thickness when exposed to flames. This keeps the tube walls thick and safe.
• Reduced Risk of Failure: As the metal is less likely to sag or warp, there are fewer surprise pipe bursts or system shutdowns.
• Consistency in Heat Units: Whether they are in a boiler or a heater, they move heat efficiently without the metal breaking down.
• Enhanced Safety: Using a material that is rated for higher heat than you actually need creates a safety net for workers and equipment.

Common Industrial Applications of Stainless Steel 309H Tubes

Many heavy industries rely on these tubes to keep their daily operations running smoothly.

• Furnaces and Heat Treatment: They are used as burner components and oven liners as they can sit in a fire all day without melting.
• Boilers and Superheaters: These tubes carry high-pressure steam. Their ability to resist “creep” makes them perfect for the intense pressure inside a power plant boiler.
• Heat Exchangers and Condensers: Since they resist both heat and chemicals, they are the top choice for moving heat from one fluid to another in refineries.
• Petrochemical and Chemical Plants: These plants use harsh acids and high heat to make plastic and fuel. Stainless Steel 309H Tubes can handle the aggressive nature of these chemicals.
• Power Generation: Whether it’s coal or gas, power plants need pipes that can survive the constant heat of making electricity.
• Cement and Glass Manufacturing: Making glass and cement requires some of the highest temperatures in any industry. These tubes are often the only material that can survive the kilns used in these processes.

Advantages of Using Stainless Steel 309H Tubes Over Other Grades

When compared to common stainless steel grades, SS 309H stands out.

• Better high-temperature strength than standard austenitic grades
• Longer service life in heat-intensive applications
• Reduced maintenance and downtime
• Improved resistance to oxidation and corrosion
• Cost-effective choice for long-term industrial use

Selection Considerations for SS 309H Tubes

Before buying, you should keep a few technical details in mind to get the right fit.

• Check the exact temperature and pressure your system will reach.
• Make sure the chemicals moving through the tube won’t cause a bad reaction with the nickel content.
• Verify the tube wall thickness and diameter to ensure it fits your existing machinery.
• Look for tubes that meet ASTM and ASME standards to ensure they were tested for safety.
• Always buy from trusted Stainless Steel Tube Manufacturers who provide material test reports.

Conclusion

Stainless Steel 309H tubes have earned their place in heavy industry for clear reasons. They resist high heat, hold strength under stress and last longer in harsh conditions. These qualities reduce risk, cut maintenance, and support smooth plant operations. From furnaces and boilers to power and chemical plants, SS 309H Tubes continue to prove their value. Their balance of heat resistance, durability, and cost makes them a smart choice for demanding work. Contact Sanghvi Overseas, trusted Stainless steel tube suppliers for high-quality SS 309H tubes for industrial use.

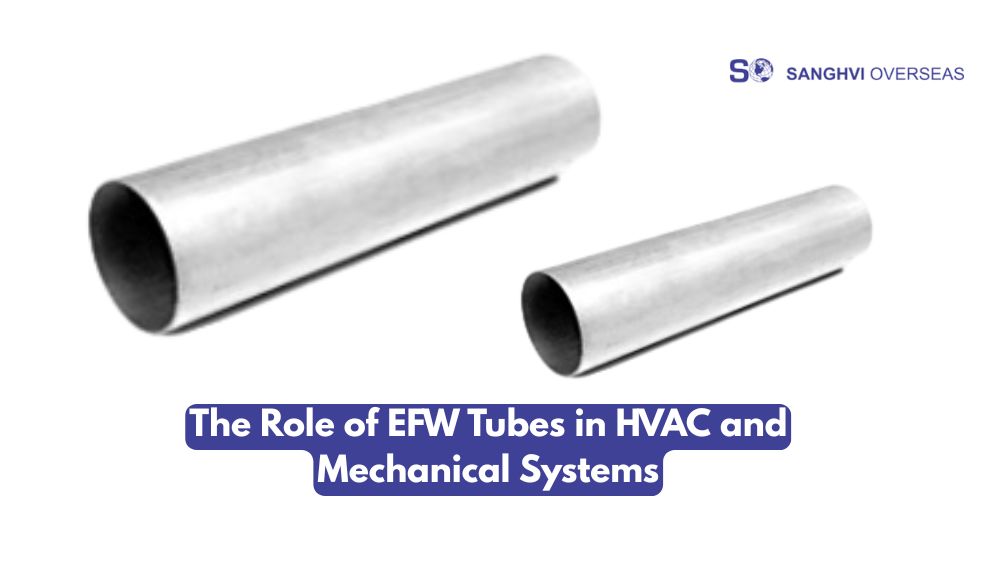

HVAC and mechanical systems depend on tubing that can handle pressure, heat, and daily wear without failure. A small problem in a pipe or tube can disrupt cooling, heating or air flow across an entire facility. As buildings grow larger and systems become more complex, the demand for strong and accurate welded tubes continues to rise. Electric fusion-welded tubes have become a preferred choice in many of these setups. They offer strength, size, flexibility, and stable performance. In HVAC work, EFW Tubes help move fluids and support structures while keeping systems efficient and long-lasting. Many project planners now rely on experienced EFW Tube Suppliers to ensure quality and consistency across installations.

What Are EFW Tubes?

Electric Fusion Welded Tubes, or EFW Tubes, are made by rolling steel plates into a tube shape and then welding the seam with very hot electric heat. In most cases, the process fuses the edges of the plate without adding any filler, making a strong and clean weld. This method gives you more control over the size and wall thickness, especially for larger diameters. For general use, carbon steel is common; for corrosion resistance, stainless steel is common; and for high strength or heat service, alloy steel is common. For larger sizes, EFW options are better than seamless tubes. Fusion welding is used to make EFW tubes, which makes them stronger than ERW tubes, which use pressure welding. This makes them better for heavy-duty use.

Key Properties of EFW Tubes

EFW Tubes are chosen for HVAC and mechanical systems because of their balanced set of mechanical and structural properties. These tubes manufacturing process allows better control over size and strength, which directly supports safe and stable system performance.

Uniform wall thickness and dimensional accuracy

EFW Tubes are produced from steel plates with controlled thickness, which helps maintain uniform walls throughout the tube length. This consistency ensures smooth fluid flow and reduces uneven stress in piping systems. In HVAC installations, this accuracy helps prevent vibration and long-term fatigue.

High strength and pressure-handling capability

The electric fusion welding process creates a strong seam that can handle high internal pressure. This makes EFW Tubes suitable for water circulation, steam movement, and other pressurised services. Their strength supports safe operation even in large and complex systems.

Good weld integrity and structural stability

EFW Tubes have a solid weld joint that offers stable mechanical performance over time. Proper fusion reduces the risk of seam failure during thermal cycles. This stability is important in systems that run continuously without shutdown.

Resistance to corrosion (depending on material grade)

These tubes are resistant to rust and corrosion when made of stainless steel or alloy steel. This is helpful for HVAC systems that move treated water or work in humid conditions. Corrosion resistance helps things last longer and need less maintenance.

Suitability for large-diameter applications

EFW Tubes are well suited for large diameters that are hard to achieve with seamless options. This allows engineers to design high-capacity lines with fewer joints. Fewer joints improve flow efficiency and reduce leak risk.

Role of EFW Tubes in HVAC Systems

HVAC systems rely on tubing that can manage temperature changes, pressure variation, and constant use. EFW Tubes support these needs by offering strength, size flexibility, and reliable weld performance. Their role extends beyond fluid transport to overall system stability and efficiency.

Use in chilled water and hot water circulation lines

EFW Tubes are widely used in chilled and hot water loops within HVAC systems. They handle both low and high temperatures without losing structural strength. This helps maintain steady flow and consistent heating or cooling output.

Application in air handling and duct support systems

These tubes are often used as structural supports for air handling units and large ducts. Their strength allows them to carry equipment loads without bending. This improves alignment and reduces vibration in air distribution systems.

Ability to handle temperature fluctuations

During use, HVAC systems often have to deal with changes in temperature. Electric Fusion Welded Tubes can expand and contract without cracking at the weld seam. This helps it stay reliable for a long time when used every day.

Contribution to energy efficiency and system reliability

Consistent inner dimensions help reduce friction losses during fluid flow. This supports efficient pump operation and lower energy use. Reliable tubing also reduces downtime and repair costs across HVAC systems.

Use in chilled water and hot water circulation lines

HVAC systems rely on stable water flow for cooling and heating. EFW Tubes handle both hot and chilled water without losing strength over time.

Application in air handling and duct support systems

These tubes are often used as support members in air handling units. Their strength helps carry loads while keeping structures stable.

Ability to handle temperature fluctuations

HVAC lines face constant temperature changes. Electric Fusion Welded Tubes manage expansion and contraction without weld failure.

Contribution to energy efficiency and system reliability

Smooth inner surfaces and consistent sizes reduce flow loss. This helps systems run efficiently with lower energy use.

Applications of EFW Tubes in Mechanical Systems

Mechanical systems place high demands on tubing due to pressure, load, heat, and continuous operation. EFW Tubes meet these demands across a wide range of industries. Their strength, size range, and weld quality make them suitable for both fluid handling and structural roles.

Industrial piping and fluid transport

EFW Tubes are widely used to carry water, oil, gas, and process fluids in industrial plants. Their ability to handle pressure and long pipe runs makes them reliable for day-to-day operations. Fewer joints also reduce the risk of leaks over time.

Boiler and heat exchanger systems

Boilers and heat exchangers operate under high temperature and pressure conditions. Electric Fusion Welded Tubes provide the strength needed to manage these loads without seam failure. This supports steady heat transfer and safe system performance.

Structural support in mechanical installations

In many mechanical setups, EFW Tubes act as support members for piping, machinery, and platforms. Their load-bearing capacity helps maintain alignment and stability. This reduces movement and stress on connected components.

Firefighting and sprinkler systems

Fire protection systems require pipes that remain reliable for long periods without use. EFW Tubes offer strong welds and durable construction, which is critical during emergency operation. Their size range also suits large building networks.

Cooling towers and refrigeration units

Cooling towers and refrigeration systems move large volumes of water continuously. EFW Tubes handle this flow while resisting moisture-related wear. Their strength supports outdoor installation and long service life.

Power plants and heavy engineering projects

Power plants and heavy engineering facilities rely on large-diameter tubing for steam, water, and support systems. EFW Tubes provide the scale and strength needed for these demanding environments. Their performance supports safe and stable plant operation.

Advantages of Using EFW Tubes in HVAC and Mechanical Systems

EFW Tubes offer practical benefits that support both performance and project efficiency. Their design and manufacturing process make them a dependable choice for large systems where safety, cost control, and ease of use matter.

Cost-effective solution for large-scale projects

EFW Tubes cost less than seamless tubes in large sizes. This helps control project budgets without cutting quality.

Availability in large diameters and lengths

They can be produced in long lengths and wide diameters. This reduces joints and speeds up installation.

High performance under pressure and thermal stress

The fusion weld holds up under heat and pressure. This makes the tubes reliable for demanding HVAC duties.

Ease of fabrication and installation

EFW Tubes are easy to cut, bend, and weld. Contractors save time during fitting and assembly.

Compliance with international standards

Most EFW Tubes meet global codes for pressure and quality. This supports safe and approved system design.

Selection Considerations for EFW Tubes

• Choosing the correct material and grade
• Pressure, temperature, and load requirements
• Weld quality and inspection standards
• Surface finish and corrosion protection
• Selecting reliable EFW Tube Manufacturers

Conclusion

EFW Tubes play a key role in HVAC and mechanical systems by offering strength, size flexibility, and steady performance. They support fluid flow, structural needs, and long service life across many applications. From building HVAC lines to large mechanical plants, Electric Fusion Welded Tubes help systems run safely and efficiently. Their balance of cost, strength, and reliability makes them a practical choice for modern infrastructure. Sanghvi Overseas continues to supply solutions that meet these needs. Contact Sanghvi Overseas, trusted EFW Tube Suppliers for high-quality tubing solutions for HVAC and mechanical applications.

Choosing the right tubing material is essential in industries where high strength, corrosion resistance and durability is needed. This includes oil and gas, chemical processing and marine systems. The well known two options used today are Duplex tubes and Austenitic Stainless Steel Tubes. Both offer good corrosion resistance and strength. This blog aims at breaking down these two types to help you understand their feature and where they perform better.

What are Duplex Tubes?

Duplex Tubes are made from a mix of two phases—ferrite and austenite. This gives them higher strength and better resistance to corrosion than many other stainless steels. A typical Duplex Tube has about 22% chromium, 5–6% nickel, and 3% molybdenum. These tubes are used in tough environments where high pressure and salt levels are common. Different types of Duplex Tubes, like standard, super duplex, and lean duplex. Each type is made to meet specific strength and corrosion needs.

What are Austenitic Stainless Steel Tubes?

Austenitic Stainless Steel Tubes are the most widely used type of stainless steel tubing. They have a high amount of nickel and chromium. These tubes are non-magnetic and easy to shape. Grades like 304 and 316 are used in food plants, buildings and many other low-stress systems. It offers good corrosion resistance, is easy to work with, and is available in many sizes and grades. Does not have the same strength as Duplex Tubes.

Microstructure and Metallurgy Differences

Duplex Microstructure

About 50% ferrite and 50% austenite compose the distinctive dual phase structure of duplex stainless steel tube. High mechanical strength and superior corrosion resistance are the result of this well balanced microstructure which combines the advantages of both phases. Duplex is a dependable choice for demanding environment because of its increased resistance to stress corrosion cracking due to its ferrite content.

Austenitic Microstructure

Austenitic stainless steel tubes have a fully austenitic structure, which is non magnetic and highly ductile. This structure has better toughness even at cryogenic temperatures. This single phase structure, however, disappears the additional strength of a ferrite and is also more susceptible to chloride related corrosion under certain conditions.

Corrosion Resistance Comparison

Chloride-Rich Environments

Duplex tubes offer superior resistance to chloride-induced pitting and crevice corrosion, making them ideal for seawater applications, desalination plants, and offshore platforms. Their mixed-phase structure, along with their added chromium and molybdenum content, provides better protection than austenitic grades in this environment.

Acidic and Oxidizing Environments

In mildly acidic or oxidizing environments, austenitic grades like 304 or 316 have been shown to perform reliably. In all cases, Duplex grades provide superior resistance in more aggressive chemical conditions because of their alloy composition. This also makes Duplex Steel more suitable for environments when mixed or unknown chemical conditions can be expected.

Stress Corrosion Cracking

One of the primary issues with industrial systems exposed to high temperatures and chlorides is stress corrosion cracking (SCC). Because of their ferritic content which helps to lessen microstructural weaknesses, duplex tubes have a high resistance to SCC. Stress corrosion cracking is more likely to occur in austenitic tubes, particularly in hot and muggy environments.

Strength and Mechanical Properties

Yield and Tensile Strength

Duplex stainless steel tubes have nearly double the yield strength of austenitic grades. This allows engineers to use thinner walls without compromising safety or performance. The higher strength-to-weight ratio also results in lower material usage and cost savings in large-scale projects.

Ductility and Toughness

Austenitic stainless steels are known for their excellent ductility and toughness. They can withstand heavy forming and bending without cracking, making them ideal for applications requiring complex shapes. Their toughness remains high even at cryogenic temperatures, which is important in industries like LNG and food processing.

Fatigue and Creep Resistance

Duplex tubes have better fatigue resistance, meaning they can endure more stress cycles before failing. This makes them ideal for vibrating or fluctuating load environments. However, austenitic stainless steels typically have better creep resistance, making them suitable for continuous high-temperature applications.

Fabrication and Welding Considerations

Welding Duplex Tubes

Welding duplex stainless steels requires careful control of heat input and cooling rates to maintain a balanced phase ratio. If improperly welded, the tubes may develop too much ferrite or austenite, reducing corrosion resistance and toughness. Specialized welding techniques and post-weld treatments are often required.

Welding Austenitic Stainless Steel Tubes

Austenitic tubes are much easier to weld and fabricate. They do not need special attentions to ensure balance and they have good weldability with all common methods. This makes them affordable and faster to install into larger or complicated piping systems.

Machinability and Work Hardening

Duplex steels work-harden more than austenitic stainless, and therefore can also make them difficult to machine. You will need to use slower cutting speeds and tougher tooling. Austinitic stainless steels work-harden as well, however it is typically easier to cut and shape therefore less labor is generated thus saving production costs.

Typical Applications of Each Tube Type

Applications for Duplex Tubes

Duplex stainless steel tubes are used extensively in the chemical processing, oil and gas, marine, and desalination industries. Duplex stainless steel offers the strength and corrosion resistance genuinely required for aggressive environments, especially those containing chlorides, & pressure variations, and multiple rising or falling temperatures.

Applications for Austenitic Stainless Steel Tubes

On the other hand, austenitic tubes are typically used for hygienic applications such as food and beverage processing, and pharmaceuticals, and domestic potable water systems. They are also common in architectural structures due to their formability and bright finish. Their ease of fabrication makes them popular in general industrial use.

Environmental and Lifecycle Considerations

Both Duplex and Austenitic tubes are 100% recyclable, which supports sustainability goals. In harsh conditions duplex tubes provide a longer service life lowering the need for frequent maintenance and replacements. Lower lifecycle costs are a result of this. Austenitic tubes may need more maintenance in corrosive environments but they still have long term value in mild environment.

Which Tube Material Should You Choose?

Choose Duplex stainless steel tubes for applications exposed to chlorides, high pressure, or mechanical stress—like offshore rigs, desalination units, and heat exchangers. They offer high strength and superior corrosion resistance, even in tough environments. Choose Austenitic stainless steel tubes for applications that demand good formability, weldability, and hygiene, such as food processing plants, clean water systems, and architectural features. They are easy to work with and perform well under low to moderate stress conditions.

Conclusion

Both austenitic stainless steel tubes and duplex tubes, also referred to as duplex stainless steel, are suitable materials to use and each have advantages and disadvantages. Austenitic tubes are more manageable and ideal for light-duty applications, whereas Duplex tubes are more strong and durable in challenging conditions. For optimal performance and value, always match the application to the material. To make sure you choose the best supplier, speak with a reliable person.

In today’s industrial climate, robust and reliable materials are needed to meet the demands of heavy-duty manufacturing and fabrication projects. Inconel 600 tube is one such material that has repeatedly proven its mettle in fulfilling the rigorous requirements of many diverse industries. With an unbeatable combination of strength, corrosion resistance, heat tolerance, and machinability, this nickel-chromium alloy offers unparalleled performance when standing up to whatever harsh conditions come in tough fabricating operations. This blog post will look at some examples of this versatile product providing invaluable support for meeting companies’ specific needs on their most important challenges.

What is Inconel 600 Tube?

Inconel 600 Tube is a nickel-chromium alloy with high strength and corrosion resistance. It is used for applications that require superior mechanical and chemical properties in extreme temperatures and highly volatile atmospheres. The material has excellent weldability characteristics, is resistant to oxidation at elevated temperatures, and offers exceptional resistance against carburization when exposed to hot environments such as furnace atmospheres. This makes it ideal for use in furnace tubes, heat exchangers, condensers and other components where the temperature and pressure can be exceptionally high. Inconel 600 Tube also excels as an industrial lining material because it protects from abrasion or erosion by acids, alkalis or other corrosive materials.

Inconel 600 Properties and Characteristics

Inconel is a high-performance alloy designed to withstand high temperatures, pressures, and chemical exposure. The Inconel 600 tube, in particular, is made from a nickel-chromium alloy with excellent strength and oxidation resistance. This material can withstand temperatures of up to 2000°F (1093°C) without losing its structural integrity, which makes it ideal for high-temperature applications.

The Inconel 600 tube also has excellent corrosion resistance properties, which makes it resistant to acidic solutions and other chemicals. Moreover, it has good mechanical properties, which allow it to withstand stress and pressure without deformation or cracking.

Applications

The Inconel 600 tube has various applications in various industries, including aerospace, chemical processing, oil and gas, and power generation. Inconel 600 tubes are used in jet engine combustion chambers, exhaust systems, and turbine components in aerospace. In chemical processing, it is used in heat exchangers, reaction vessels, and piping systems that handle corrosive chemicals.

Inconel 600 tubes are used in downhole tubing, wellhead components, and safety valves in the oil and gas industry. It is used in boilers, heat exchangers, and turbine components in power generation. In all these applications, the Inconel 600 tube plays a critical role in ensuring industrial processes’ safe and efficient operation.

Benefits of Inconel 600 Tubes

Using Inconel 600 tubes in heavy industrial manufacturing and fabrication provides several benefits. They are highly durable and can withstand high temperatures, pressures, and chemical exposure. They are also resistant to corrosion and oxidation, which reduces the risk of material degradation and failure.

Furthermore, Inconel 600 tubes have excellent thermal conductivity, which allows for efficient heat transfer and temperature control in high-temperature applications. They also have good mechanical properties, which enhance their resistance to damage and wear.

Manufacturing of Inconel 600 Tubes

Manufacturing Inconel 600 tubes involve a combination of hot and cold working processes. These processes include extrusion, forging, spinning, and drawing. The extrusion process involves forcing the Inconel 600 alloy through a die at high temperatures and pressures to produce the desired shape and size.

The forging process involves heating the Inconel 600 alloy to a specific temperature and then applying pressure to shape it into the desired form. The spinning process involves rotating the Inconel 600 tube on a mandrel at high speeds to shape it into a desired shape.

Conclusion:

In conclusion, the Inconel 600 tube is critical in heavy industrial manufacturing and fabrication. Its excellent properties and characteristics are ideal for high-temperature, high-pressure, and corrosive applications. The Inconel 600 tube is vital in maintaining safe and efficient industrial processes in various industries. With its robust manufacturing processes, the Inconel 600 tube will continue to play a substantial role in modern manufacturing and industrial processes for a long time.



Monel 400 is a nickel and copper alloy which provides excellent resistance to corrosion, high temperatures, and stress cracking. With its remarkable properties, Monel 400 tubes have been widely used for custom projects that require durability, strength, and flexibility. However, working with Monel 400 tubes can be challenging because of their toughness and hardness. This article will show you how to bend and shape Monel 400 tube correctly for your custom projects. We will analyze the methods, tools, and tips needed to help you create stunning results. So, let’s dive in!

How to band & Shape Monel 400 Tube

Bending Techniques:

Bending tubes may seem straightforward, but it takes skill, patience, and precision. There are several methods of bending Monel 400 tubes, including hand bending, rotary draw bending, and induction bending. Hand bending, as the name implies, is the simplest and most accessible method. You can use a handheld tube bender or a vice to bend the tube to your desired angle. Rotary draw bending uses a machine that pulls the tube through a die while applying pressure to bend it. This method is ideal for precision bending or tight radii. Induction bending uses a heating coil to heat the tube’s specific area, making it more pliable. This method is suitable for complex shapes and large diameters. Whatever the bending method you choose, use a lubricant to prevent cracking or splitting.

Shaping Techniques:

Shaping Monel 400 tubes can be more complicated than bending them. Since Monel 400 is a hard material, it requires special tools and techniques for shaping. Rolling, flaring, and swaging are the most common among these techniques. Rolling is a method that involves passing the tube through three rollers to shape it into a curve, cone, or sphere. Flaring is used to enlarge the end of the tube for better fittings and coupling. Swaging is the process of reducing the diameter of the tube by compressing it. This method is useful for tube-end forming and close tolerances. To shape Monel 400 tube, use a proper combination of heating, lubrication, and pressure.

Tools and Equipment:

To bend and shape Monel 400 tube, you will need specific tools and equipment. These include a tube bender, die, mandrel, lubricant, heating device, and swage tool. The tube bender is the central tool for bending the tube. You can either use a handheld or hydraulic bender. The die and mandrel are necessary accessories that connect to the bender and determine the tube’s radius and angle. For shaping, a flaring tool and a swage tool are required. Lubricants such as oil, wax, or soap can prevent scratching, galling, or scuffing. Finally, a heating device like an induction coil or a propane torch is essential for shaping methods that require heating.

Tips for Success:

Bending and shaping Monel 400 tube is not easy, but you can achieve excellent results with a few tips and tricks. First, choose the correct method of bending or shaping that suits your project design. Second, use the right combination of tools, mandrels, and lubricants to avoid damage or defects. Third, plan your bend or shape sequence to prevent interference or accidents. Fourth, follow the heating guidelines for shaping techniques that require heating. Fifth, practice on scrap or extra pieces before bending or shaping your final product.

Conclusion:

Monel 400 tube is an excellent material for custom projects that require strength, durability, and corrosion resistance. Bending and shaping Monel 400 tube requires practice, patience, and precision. Several bending and shaping methods exist, including hand bending, rotary draw bending, and induction bending. Shaping techniques like rolling, flaring, and swaging can create unique and intricate shapes. To bend and shape Monel 400 tube effectively, use the right combination of tools, mandrels, and lubricants and follow the guidelines and heating protocols. With the tips and techniques in this article, you can craft your custom projects with Monel 400 tube like a pro!

As science and technology progress, the need for materials that can withstand extreme temperatures, pressure, and corrosion damage increases. Inconel 600 Tube is one such material that has proved incredibly useful and reliable in various industries, from aerospace to marine engineering. But what impact does its production and usage have on the environment? In this blog post, we delve into the potential environmental effects of producing and using Inconel 600 Tube so you can make a more informed decision about whether it’s suitable for your particular application.

What is Inconel 600 Tube?

Inconel 600 Tube is a nickel-chromium alloy with good resistance to oxidation and corrosion. Its strength and flexibility make it suitable for high-temperature applications such as jet engines, exhaust systems, heat exchangers, oil refining industry components, nuclear reactors, food processing equipment and chemical processing plants. It also has excellent weld ability and formability characteristics, making it great for fabrication into parts of varying sizes and shapes. Additionally, its ability to resist stress fatigue helps ensure your tube stays strong even when exposed to thousands of cycles or extreme vibration frequencies. This versatile alloy is an excellent choice for many challenging industrial applications where performance under harsh conditions is essential!

Environmental Impact of Inconel 600 Tube

Production

Inconel 600 tube production relies heavily on energy-intensive and resource-intensive processes. The raw materials needed for production include nickel, chromium, and iron ore. Thus, the environmental impact of this tube production is quite significant. Pollutants such as carbon dioxide (CO2), Sulphur dioxide (SO2) and nitrous oxide (NOX) are released during their manufacture. Water contamination issues can also arise due to acid-washing activities during manufacturing. To minimize the environmental impact of Inconel 600 tubes’ production, it is important to adhere to all local regulations regarding hazardous waste management and emissions control protocols and use efficient machinery with low energy consumption levels throughout the process.

Usage

Inconel 600 is a nickel-chromium alloy known for its corrosion and oxidation resistance, strength in high temperatures, and weldability. Its production often involves high energy consumption and the release of greenhouse gases like carbon dioxide. During its usage phase, it can also act as a catalyst for various reactions, such as causing undesirable surface deposits on other metals due to hydride formation. It can also contribute to smog formation in certain industrial applications involving burning fuel or incineration processes. Despite its environmental drawbacks, Inconel 600 remains valuable due to its cost-saving benefits and highly reliable performance in many industries.

Recycling

Inconel 600 manufacturing and its subsequent usage have had varying environmental impacts. The heat treatment used during production produces large amounts of hazardous byproducts, such as silica dust particles, nickel oxide fumes, and sulfur dioxide. Using chlorinated solvents for cleaning can further contaminate water sources with ethylene dichloride and polychlorinated biphenyls (PCBs). Fortunately, there are several ways to mitigate these impacts. Recycling materials used in Inconel 600 tubing production has proven to be very effective at reducing waste and impacting the environment. Using closed-loop recycling processes allows all scrap material generated from production or machining to be melted into new raw materials reused in new products. This helps cut down on emissions and reduces costs associated with obtaining new raw materials regularly while promoting sustainable business practices.

Regulation and mitigation

Regulatory measures can be put in place to reduce the environmental impact of Inconel 600 tube production and usage. These measures include limiting the volume of waste generated during production, implementing safe disposal methods, and improving the efficiency of manufacturing processes. Mitigation measures include using alternative materials that are less harmful to the environment and using Inconel 600 tubes only when absolutely necessary.

Conclusion

Inconel 600 tube production and usage significantly impact the environment, as seen from the amount of waste generated and greenhouse gas emissions. However, regulatory and mitigation measures, including recycling methods, environmentally friendly production processes, and alternative materials, can be taken. By implementing these efforts, we can reduce the impact and help preserve our planet for future generations.

Are you looking for a reliable way to improve fluid regulation and delivery? Then look no further than braided stainless steel tubing! This product has long been the go-to choice for many industrial, chemical, electrical, heating, and water treatment services businesses. By taking advantage of its superior flexibility and corrosion resistance properties, users can easily maintain control over their targeted fluids while at the same time providing an extra layer of protection from rust or other environmental elements. In this blog post, we will provide an overview of flexible braided stainless steel tubing – covering its benefits, aspects to consider when purchasing and more. Join us as we explain why so many people confidently add this material to their operations!

What is Flexible Braided Stainless Steel Tubing?

Are you tired of using the same old standard pipe materials for your projects? You’re lucky – flexible braided stainless steel tubing is quickly becoming an industry standard among professionals. Its sleek design and superior performance make it the perfect choice for various applications, from plumbing to automotive systems. A popular choice due to its durability and temperature resistance, this type of tubing enables strong connections with minimal effort while providing superior noise absorption properties. With its versatility and unique characteristics, I do not doubt that this tubing will take your projects to the next level! In this blog post, we’ll cover all aspects of making flexible braided stainless steel tubing an effective solution – from installation tips to compatibility considerations. By reading through our guide, you can join other experts utilizing this innovative technology and giving their work a much-needed boost!

Advantages of Flexible Braided Stainless Steel Tubing

One of the key advantages of flexible braided stainless steel tubing is its flexibility. This tubing can bend and twist without collapsing, which makes it ideal for applications that require flexibility. Another significant advantage is that this tubing is highly corrosion-resistant and can withstand high temperatures or pressure. The braided stainless steel layer adds strength and reduces the risk of damage during installation or in use.

Applications of Flexible Braided Stainless Steel Tubing

Flexible braided stainless steel tubing has numerous applications, making it a versatile choice for many industries. For example, it is often used in petrochemical plants to transport high-pressure gases and liquids such as steam and oil. It is also used in the food and beverage industry, where it is essential to maintain sanitary conditions. Flexible braided stainless steel tubing can also be used for fuel lines or hydraulics systems in aircraft and automobiles.

Maintenance and Installation of Flexible Braided Stainless Steel Tubing

Flexible braided stainless steel tubing is easy to install, and it is essential to use only qualified professionals for installation. The tubing should be inspected regularly for any signs of damage or leaks. The stainless steel layer provides a robust outer covering, but it is still necessary to maintain the tubing properly. Proper maintenance can extend the tubing’s lifespan substantially.

Cost of Flexible Braided Stainless Steel Tubing

Flexible braided stainless steel tubing may be more expensive than other types of tubing; however, it offers long-term reliability and durability. The cost of the tubing depends on factors such as the size, length, and application. If you’re looking for a product that will last longer and require less maintenance, flexible braided stainless steel tubing might be worth the extra investment.

Conclusion:

Flexible braided stainless steel tubing offers flexibility, durability, and reliability in piping applications. It is resistant to corrosion and can be used in the petrochemical, food, and aerospace industries. Regular inspections and proper maintenance can prolong the tubing’s lifespan, but it is important to have it installed by a professional. While the initial cost of flexible braided stainless steel tubing may be higher, it is a solid investment that offers long-term benefits.
