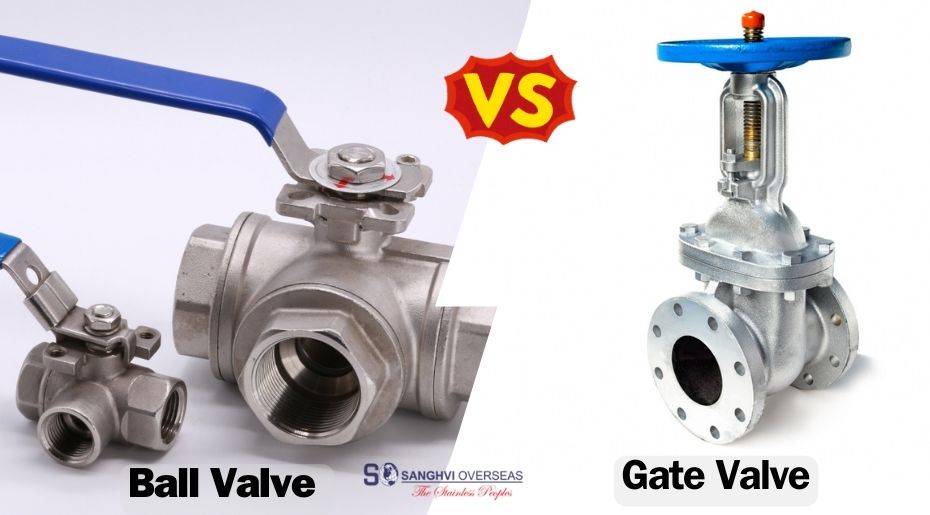

Gate Valve Vs Ball Valve

Gate valves and ball valves are pivotal components in controlling the flow of liquids and gases in various industries. While both serve similar functions, they operate differently and offer distinct advantages and disadvantages. Understanding their differences is essential for selecting the optimal valve for your needs.

Operation Differences:

Ball Valve:

ball valve opening diagram

    • Utilizes a rotary ball with a bore and stem.
    • Operates with a simple 90° quarter turn of the handle.
    • The parallel handle position indicates an open valve; the perpendicular indicates a closed.

Gate Valve:

gate valve diagram


    • Relies on a solid gate connected to the stem.
    • Multiple turns (more than 360°) are required to fully open or close.
    • The movement of the gate controls the flow, facilitated by a rotating bonnet.

Advantages and Disadvantages:

Understanding the advantages and disadvantages of gate and ball valves is crucial for choosing the right valve for your specific application. Below, we provide a comprehensive comparison table highlighting key differences between gate and ball valves.

Aspect Gate Valve Ball Valve
Operation Multi-turn operation; requires more than 360° turn Quarter-turn operation; simple 90° turn for open/close
Design Utilizes a gate to control flow Features a rotary ball with a bore and stem
Flow Capacity Larger flow capacity due to straight flow path Limited flow capacity compared to gate valves
Opening/Closing Speed Slower operation due to multiple turns Faster opening/closing speed; ideal for emergencies
Sealing Good sealing properties; suitable for high pressures Provides tight seal and complete shut-off characteristics
Pressure Suitable for high-pressure applications Prone to pressure surges, not ideal for high pressures
Cost Generally more economical upfront cost Higher initial cost, but lower maintenance expenses over time
Common Applications Older plumbing systems, power plants, water treatment New plumbing systems, fire protection, marine applications

Selection Criteria:

gate valve and ball valve fittings compare

Consider the following factors when choosing between gate and ball valves:

  • Ports: Gate valves have 2 ports, while ball valves can have more.
  • Flow Capacity: Gate valves offer larger flow capacity.
  • Opening/Closing Speed: Ball valves are quicker due to their quarter-turn operation.
  • Sealing: Ball valves provide tighter seals, crucial for applications like natural gas.
  • Pressure: Gate valves are better suited for high-pressure environments.
  • Cost: Ball valves are initially costlier but offer long-term savings.
  • Connection: Choose the appropriate connection type for your application.

Common Applications:

  • Gate Valves: Common in older plumbing systems, large water supply lines, power plants, mining, and water treatment.
  • Ball Valves: Increasingly used in new plumbing systems, fire protection systems, marine applications, but not recommended for food, beverage, or pharmaceutical industries due to cleanliness concerns.

Which One to Choose?

Understanding the operational disparities between gate and ball valves and their respective advantages and disadvantages is crucial for selecting the right valve for your specific application. By considering factors such as flow capacity, sealing capabilities, pressure requirements, and cost, you can make an informed decision that optimizes performance and longevity in your system.
