Carbon steel pipe and stainless steel pipe are not interchangeable. Deciding which one to buy mostly depends on your budget and where the pipes will actually be installed. While both types are common, they handle rust and daily wear-and-tear differently, meaning one might save you a lot more on maintenance costs in the long run. This guide compares the two materials so engineers, procurement teams, and project managers can make a specification based on operating conditions rather than habit. Selecting the wrong material will result in premature system failure or unnecessary costs. We have the technical information you need to optimize costs versus system reliability.

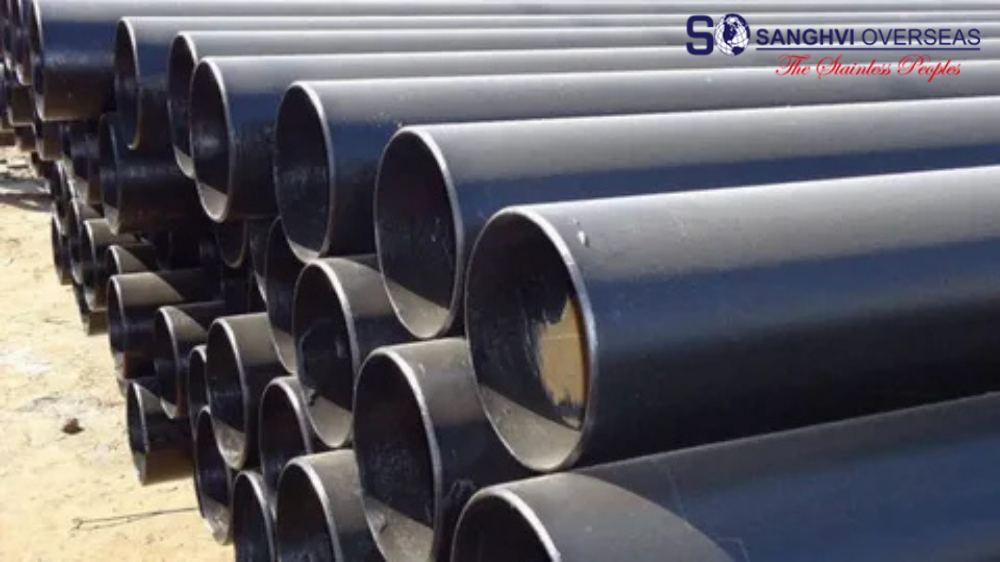

What Is a Carbon Steel Pipe?

A carbon steel pipe is a strong metal tube made from a blend of iron and carbon. Adding more carbon makes the pipe harder and stronger, while less carbon makes it easier to weld and shape. This type of pipe is the most popular industrial pipe in the world because it is affordable, lightweight, and very strong. Since it is easy to connect and install using standard tools, it is a reliable choice for almost any project.

Main Features of Carbon Steel Pipe

  • Tensile strength: Carbon steel pipes can withstand high mechanical stresses and internal pressure, making them ideal for industrial plumbing and structural applications.
  • Pressure rating: These pipes come in a range of sizes and grades, which means they can be used in industrial settings with a wide range of pressures.
  • Weldability: Carbon steel pipes are easy to weld and produce, making construction and maintenance installation, modification, and on-site repairs easier.
  • Cost: Material cost is substantially lower than stainless steel equivalents at equivalent bore and schedule.
  • Corrosion behavior: It dissolves in water, air exposure, and other chemical environments that lack cathodic protection or protective coating.

Where Carbon Steel Pipe Is Commonly Used

Carbon steel pipe is the primary choice for the transport of energy and buildings when the fluids are noncorrosive, and the temperature is normal. It is also inexpensive and readily available, and people normally use it in ships and cities where extra corrosion protection is not necessary.

What Are Stainless Steel Pipes?

Stainless steel pipes contain chromium, which creates a natural protective layer that prevents rusting without the need for extra coatings. Grade 304 is the standard choice for general rust protection in most environments. However, Grade 316 contains an extra ingredient that protects the metal from damage caused by salt or harsh chemicals. SS 316 is more durable in salty conditions. However, both stainless grades cost much more than a standard carbon steel pipe of the same size.

Main Features of Stainless Steel Pipes

  •   Corrosion resistance: self-repairing passive layer resists atmospheric, chemical, and chloride corrosion without protective coating.
  •    Minimum yield strength: 205 MPa for Grade 304 and 316 in the annealed condition under ASTM A312 (standard specification for seamless, welded, and heavily cold-worked austenitic stainless steel pipes).
  •     Weldability: L grades (304L, 316L) limit carbon to 0.03% C maximum, preventing sensitization in the heat-affected zone without post-weld heat treatment.
  •     Hygienic surface characteristics: 2B and electropolished finishes meet FDA and EHEDG requirements for food and pharmaceutical contact.

Common Uses of Stainless Steel Pipes

Food plants use stainless steel pipes for contact lines. Their smooth surfaces prevent metal leaching and withstand harsh cleaning chemicals. Pharmaceutical firms require stainless steel piping for purified water to avoid batch rejection due to metal contamination. Marine pipes must be 316 because chloride pitting destroys carbon steel pipes in months. Chemical companies handling acids, salty solutions, and oxidizers require corrosion-specific stainless steel grades.

 Carbon Steel Pipe vs Stainless Steel Pipes: Key Differences

  • Corrosion resistance: stainless steel resists corrosion without coating; carbon steel corrodes without external protection in most wet environments.
  • Tensile strength: ASTM A106 Grade B carbon steel delivers 415 MPa minimum tensile; ASTM A312 Grade 304/316 delivers a lower 515 MPa minimum tensile but with better toughness and ductility.
  • Cost: Carbon steel procurement cost is 30 to 60% lower than stainless steel at equivalent bore and schedule, depending on grade and market conditions.
  •  Weldability: carbon steel welds under standard procedures without special precautions for most thicknesses; stainless steel requires control of heat input to prevent sensitisation, and L grades are specified to remove PWHT requirements.
  • Maintenance: stainless steel requires no coating inspection or reapplication; carbon steel in corrosive service requires active corrosion management throughout its service life.
  • Temperature range: In prolonged use, ASTM A106 Grade B covers up to 425 degrees C; austenitic stainless grades can reach 870 degrees C with proper grade selection.

When Should You Choose a Carbon Steel Pipe?

High-pressure steam systems and structural projects often rely on carbon steel pipe for its durability. Carbon steel is mostly used for the transport of oil and gas in areas that aren’t corrosive. It’s much cheaper than stainless steel, yet still strong enough for long-distance pipes. Engineers choose this one because there’s lots of performance data available, showing how well it works after years of service. The carbon steel pipe supplier should be able to provide ASTM A106 or A53 mill test certificates with heat level results for the chemicals and mechanical properties of each lot.

When Should You Choose Stainless Steel Pipes?

Stainless steel pipe is recommended when the fluids to be processed contain over 200 ppm chlorides at high temperatures or when hygiene and metal-free contact are essential. The material is also recommended when the operating conditions corrode carbon steel too quickly for coating maintenance to be considered. Even though it is more expensive, it is cost-effective in the long run because it requires less maintenance and lasts longer. It is important that the supplier is certified and able to provide documentation on ASTM A312, heat tracing, and EN 10204 3.1 Mill Test Certificates.

The selection of material type, whether carbon steel pipes or stainless steel pipes, is ultimately dependent on fluid chemistry and total lifecycle costs. Engineers have to consider various factors before selecting a suitable material type for their project. Such factors include corrosive media, chloride content, temperature, and service life. Once all these factors are determined and matched against existing material performance data, procuring from a reliable supplier can assist in obtaining certified documents and reliable material quality.
